Product Description

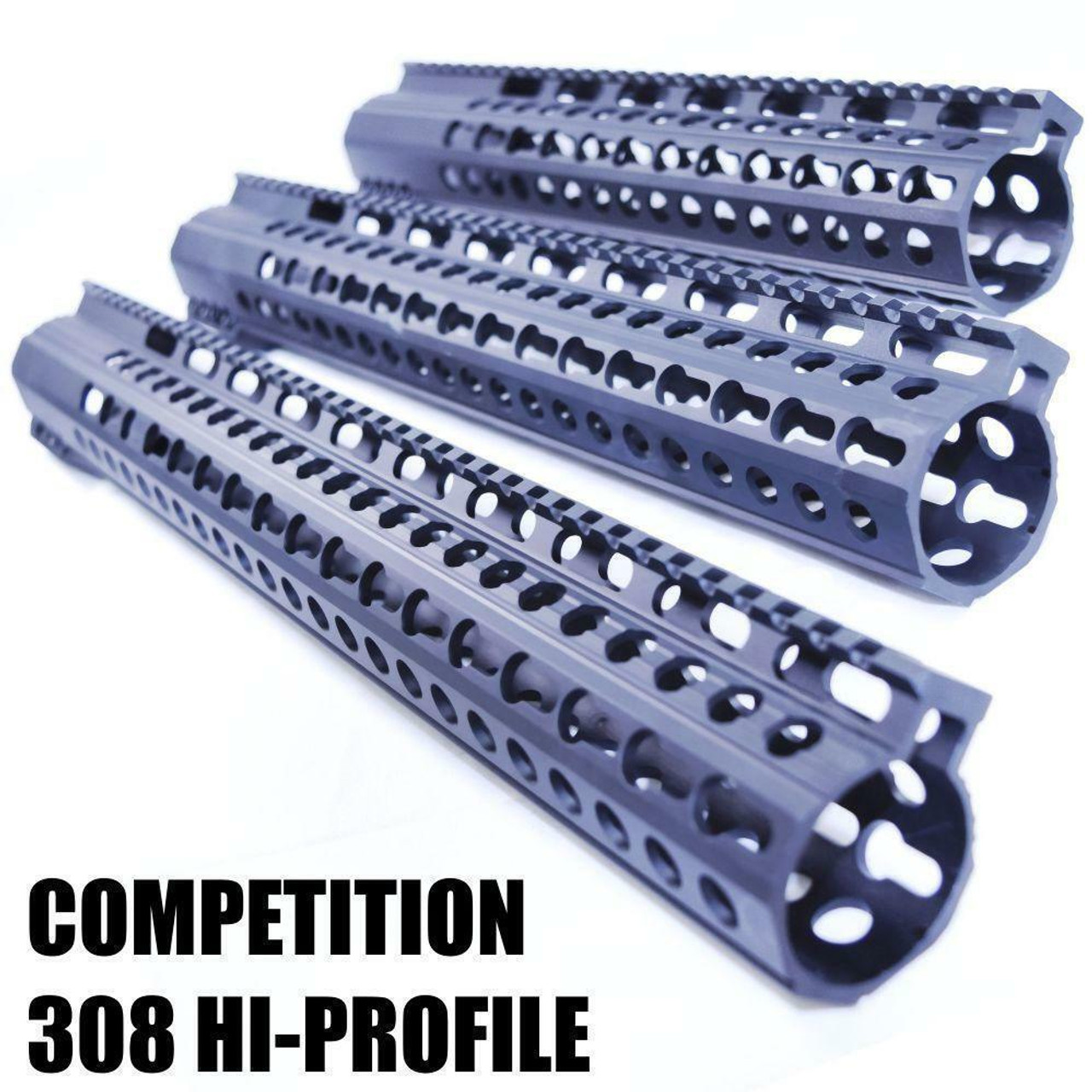

The CTS Ultra-Lite 308 Series Hand Guard system is a revolutionary development in DPMS/SR-25 handguards. It Features the dynamic Vltor style KeyMod system for attachments. Machined of 7075-T6 aluminum, with black hard anodized finish. A full length top rail makes accessories and optics mounting a no-brainer, and the unique design functions with all commercial KeyMod products.
Note: Only fits the high profile DPMS pattern uppers and compatible.
- 16.5" weighs 0.93 lbs - ID 1.525"/ ID Gas block 1.783" - OD top-bottom 2.08"
- Dimensions, side to side (flat areas) ID 1.51" - OD 1.66"
- Accessory Rail 3" length - weighs 0.16 oz. ea. or 0.5 oz for all 3 installed
Includes:
- .308 8620 Steel Proprietary Barrel Nut
- All mounting hardware
- 3 3" accessory rails with hardware.
- This is for the DPMS LR-308 Hi Profile Pattern only!
Installation:
- Insert barrel into receiver.
- Use blue loctite on receiver threads (2-3 drops)
- Use our Multi Caliber Armorer Tool or a 1 3/8" crows-foot to tighten to 30-35 lbs
- Install gas block assembly, you may need to notch the barrel nut a few mills...
- Slide the hand-guard over the barrel nut and align top rail
- Align and insert the wedge compression nuts up towards the barrel nut
- Tighten each to 8-10 lbs | Use 1 drop blue loc-tite each
Product Videos
Custom Field
Product Reviews
8 Reviews Hide Reviews Show Reviews
-
COBRATAC Competition 308 Series | LR-308 Free Float 16.5" Handguard | Hi Profile
Very happy with this handguard. It mounted easily, looks good and fit my DPMS high upper perfectly. It is light weight and comfortable in the hand. Plus high marks for there customer service, had and issue with shipping, not at all Cobratac's fault but they where there and helped with resolving the issue. Will definitely look at them for other accessories or builds.
-
Superb handguard
Put the LR-308 hi profile on my Stag AR10. Solid, light and well worth the money spent.
-
awsome
Fit and finish is excellent. Highly recommend this product.
-
Lightweight and Perfect Fit: DPMS 308 high profile
The Cobratac 12in free float handguard was perfect fit for my DPMS 308 high profile upper. It is also one of the lightest handguards available for 308 weapons. The steel barrel nut provided is a plus since it does not require a special tool.
-
you get what you pay for
I ordered the high profile DPMS. The rails height doesn’t align & do not match up. but it is free floated & its a handguard. Like it is in life you get what you pay for……. gas, grass or ass ….. no one rides for free.
-
Satisfied Customer
Fits great. Shipping was fast. I'm very pleased with this rail.
-
Thank you..
Great product and service.
-
Awesome product
Very fast delivery,perfect fit would definitely recommend this company!
